Pioneering connectivity concepts have propelled Sunway Communication into a global leader. With a broad range of products covering most of the transmit and receive chains, we understand the system impact of each critical component we supply. Our global customer base across multiple industries has made us experts in products for virtually any system: Bluetooth, WiFi, GNSS (GPS, Galileo, Glonass, Beidou, etc.), NFC, and of course the various cellular standards like 4G LTE and 5G with MIMO incl. related mm-wave components. Ultra-Wideband (UWB) is another technology where Sunway is taking a leading role. We have partnered with NXP Semiconductors and created UWB solutions, both off-the-shelf modules, tags and antennas as well as the capability to customize antennas and other solutions to customers worldwide.
The Sunway UWB Development Kit (SW-EVK-3) delivers everything you need to evaluate and prototype high-precision UWB ranging, angle-of-arrival and real-time-location applications. Each kit ships in a rugged protective box and includes one fully-configured devkit board (can be used as either anchor or tag), based on Sunway’s SR150 Trimension? UWB module and a Nordic nRF52840 BLE microcontroller.
Use a single SW-EVK-3 with your smartphone (e.g. NXP Trimension AR app) or PC to measure raw Two-Way-Ranging (TWR) and Phase-Difference-of-Arrival (PDoA) data. Combine two or more kits in anchor/tag configurations to demonstrate:
? TWR, PDoA, DL-TDoA and UL-TDoA modes
? Multi-node, multi-session ranging
? 2D and 3D Real-Time Location System (RTLS) with ±10?cm accuracy
Specification：
The SW-EVK-3 kit ships in a protective cardboard box containing:

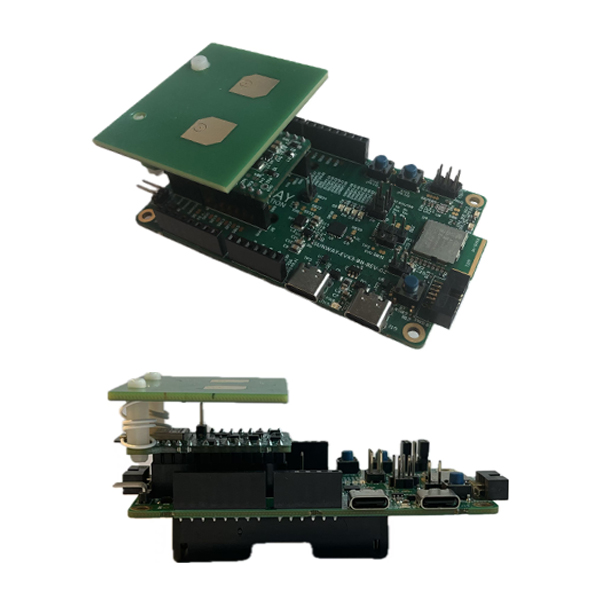

? 1× SW-EVK-3 devkit board, comprising:
* Sunway SR150 UWB module on MikroBus carrier
* Host MCU: Nordic nRF52840 (USB, BLE, UART interfaces)
* SW-SU001 dual-patch UWB antenna
Product and Supply Features：
? UWB Standard: IEEE 802.15.4z HRP; FiRa Consortium PHY & MAC
? Ranging & RTLS: ToF, TDoA, AoA; 2D/3D RTLS (≥3 anchors for 2D, ≥4 for 3D)
? Modes: DS-TWR, TWR, PDoA, DL-TDoA, UL-TDoA, multi-node, multi-session
? Host Interfaces: USB-C (power & data), BLE (Nordic NUS), UART (JSON-based)
? Power: USB or 3× AAA batteries (not included)
? Software: PC terminal utility; Apple Nearby & Android support; no firmware coding required
? Antenna: SW-SU001 dual-patch, integrated on board
? Membership: FiRa Consortium, UWB Association member
? Module chipset: NXP Trimension? SR150 & SR040
Special Note:
The following items are provided by e-mail upon request:
? PC evaluation software (terminal utility and RTLS python app)
? EVK-3 start-up guide
To inquire or order, please e-mail:?marketing@sz-sunway.com
Version: May 2025 ? Sunway Communication
?
?
